EcoBag® Geotextile Slope Protection System Build Stable. Grow Green. Last Longer.Sustainable Vegetated Retaining Walls for Erosion Control & Aesthetic Landscaping

100 stuks
MOQ
Inquire anytime
Prijs
EcoBag® Geotextile Slope Protection System Build Stable. Grow Green. Last Longer.Sustainable Vegetated Retaining Walls for Erosion Control & Aesthetic Landscaping
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Materiaal: Polyestervezel/polypropyleenvezel
Lange- en dwarsbrekingsvermogen: ≥ 4,5KN/M
Verlenging bij breuk: 40% tot 60%
Dikte: ≥ 0,6 mm
Grootte: 80 mm x 50 mm
Basis informatie
Plaats van herkomst: Hunan China
Merknaam: JIANYI
Certificering: CE&ISO
Betalen & Verzenden Algemene voorwaarden
Levertijd: 5-8 werkdagen
Betalingscondities: T/T, L/C
Levering vermogen: 1200T/month
Productomschrijving

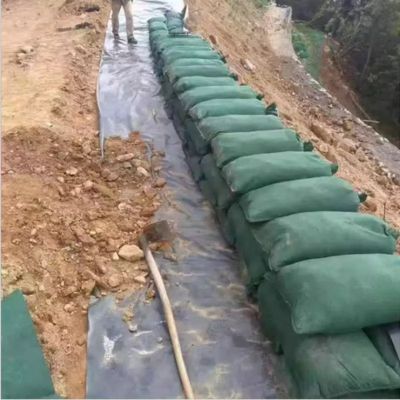

Transform unstable slopes into thriving green structures with EcoBag—a patented system combining high-strength geotextile bags, engineered soil infill, and integrated vegetation. Achieve natural stability with zero concrete, creating biodiverse habitats while preventing erosion.


Key Advantages Over Conventional Solutions

✅ Instant Slope Armorization

  • Deploys 70% faster than gabion walls or riprap

  • Walkable immediately after filling

✅ Self-Sustaining Vegetation

  • Pre-seeded bags germinate in 7–14 days (custom seed mixes available)

  • Root reinforcement increases strength by 300% over 24 months

✅ Superior Hydraulic Performance

  • Permeable structure prevents hydrostatic pressure buildup

  • Withstands flow velocities up to 15 ft/sec (4.5 m/s)

✅ Cost & Eco Savings

  • 40% lower installed cost vs. concrete walls

  • 100% recyclable polypropylene construction

  • Carbon-negative over lifecycle (removes 2.1 tCO₂e/100m²)


Technical Specifications

Parameter Performance Data Test Standard
Bag Material UV-stabilized PP geotextile ASTM D4355
Fabric Strength ≥ 25 kN/m tensile ASTM D4632
Bag Dimensions 20" x 30" (50x75cm) standard Custom sizes available
Fill Capacity 0.75 ft³ (21L) per bag ISO 9863
Design Slope Angle Up to 75° FHWA-NHI-00-043
Hydraulic Conductivity 0.2 cm/sec ASTM D4491
Vegetation Coverage ≥ 90% in 60 days ASTM D7328
Design Life 75+ years GRI-GT13

Engineered Applications
